SKU:

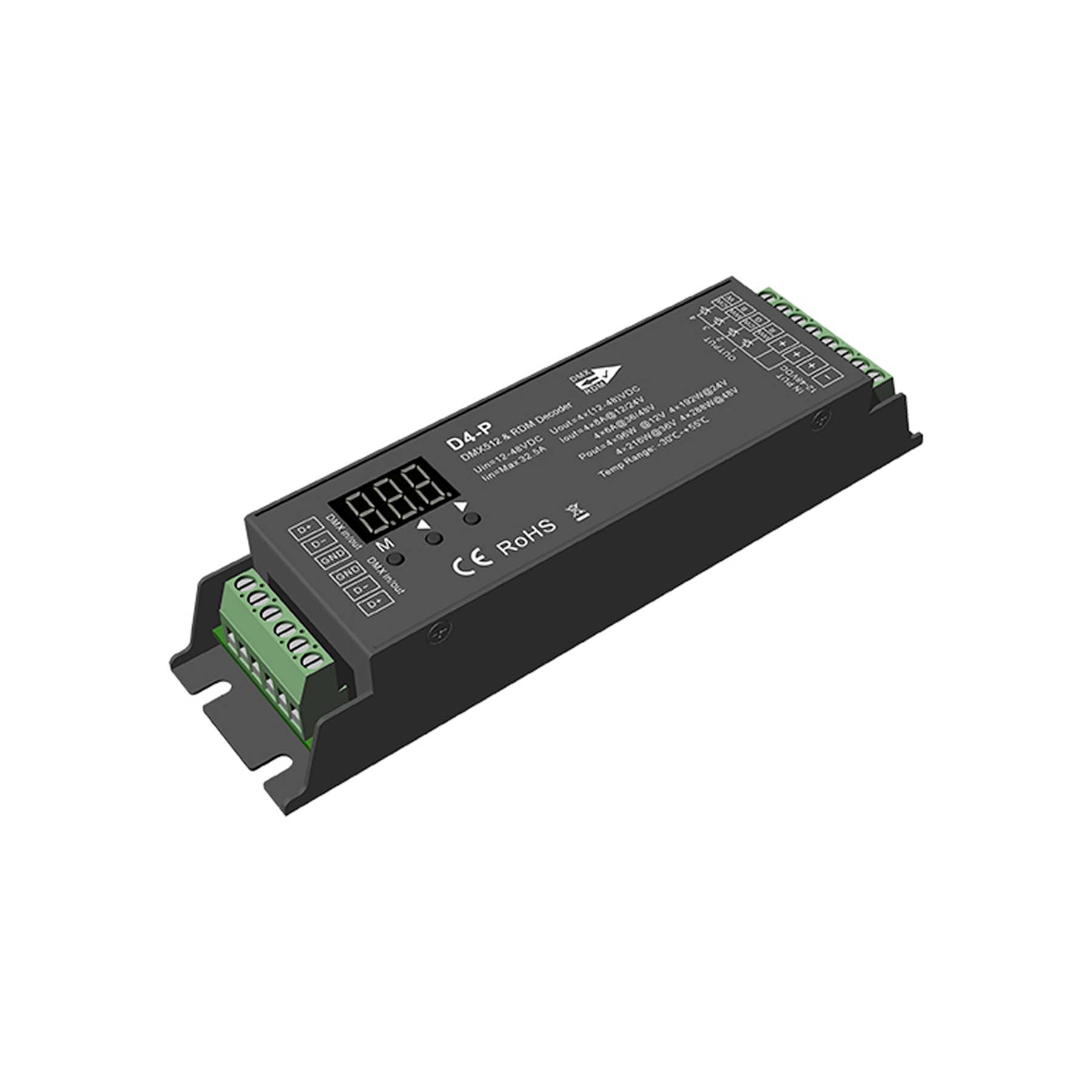

D4-P
Telephone: +44 121 439 8181
General Enquiries: info@gws-led.co.uk, Sales Enquiries: sales@gws-led.co.uk
Live Chat: our customer service representatives and technical support team are available to chat throughout the week.
Address: G.W.S. LED, 53 Summer Lane, Birmingham, B19 3TH, United Kingdom
Telephone: +44 121 439 8181
General Enquiries: info@gws-led.co.uk, Sales Enquiries: sales@gws-led.co.uk
Live Chat: our customer service representatives and technical support team are available to chat throughout the week.
Address: G.W.S. LED, 53 Summer Lane, Birmingham, B19 3TH, United Kingdom
- Comply with the DMX512 standard protocols.

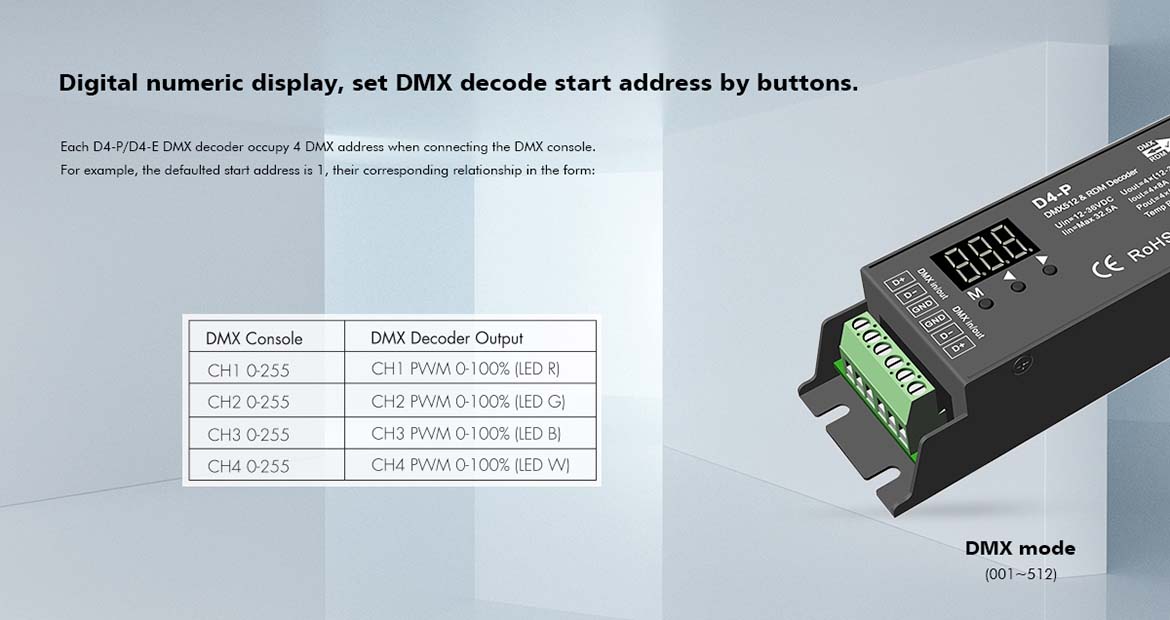

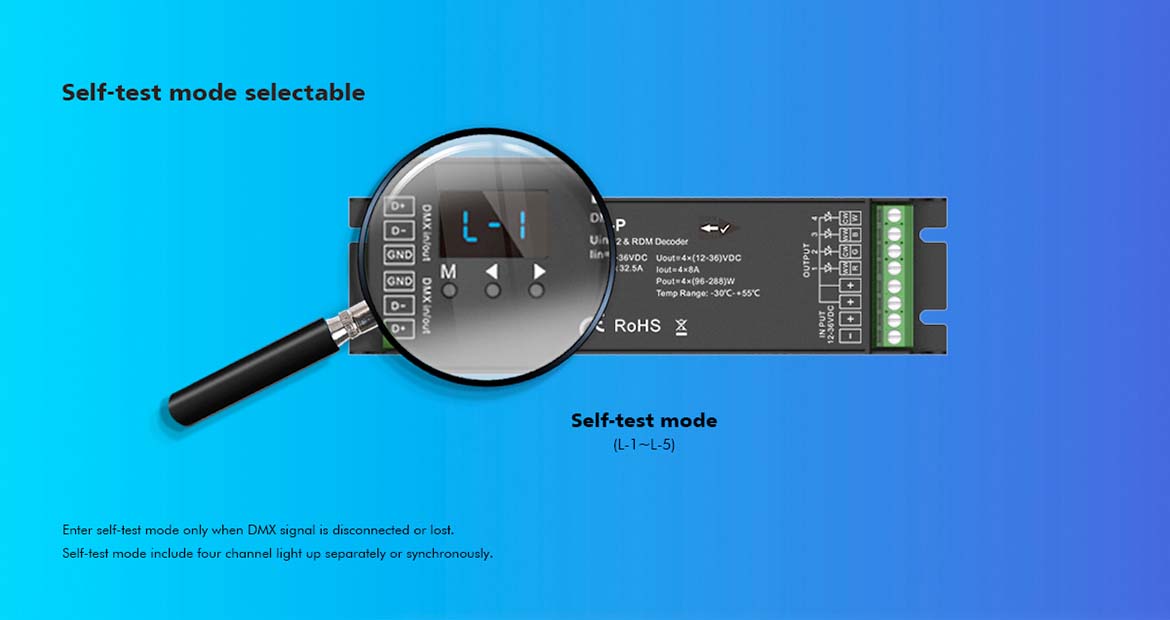

- Digital numeric display: set DMX to decode and start the address using the buttons.

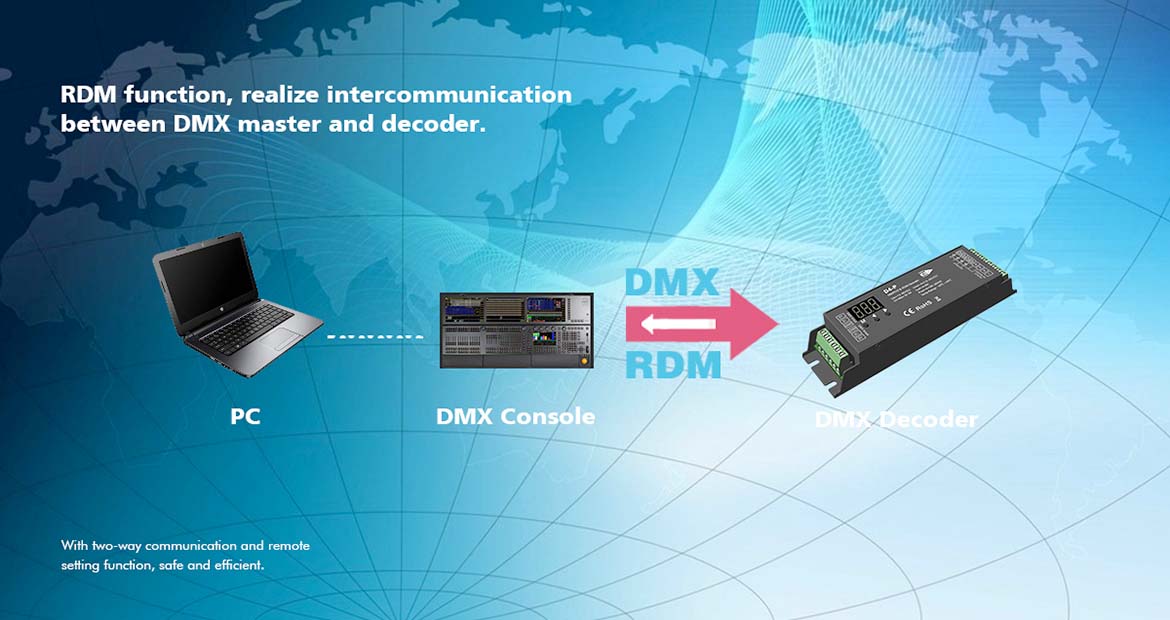

- RDM function allows communication between the DMX master and decoder. For example, the DMX decoder address can be set by the DMX master console.

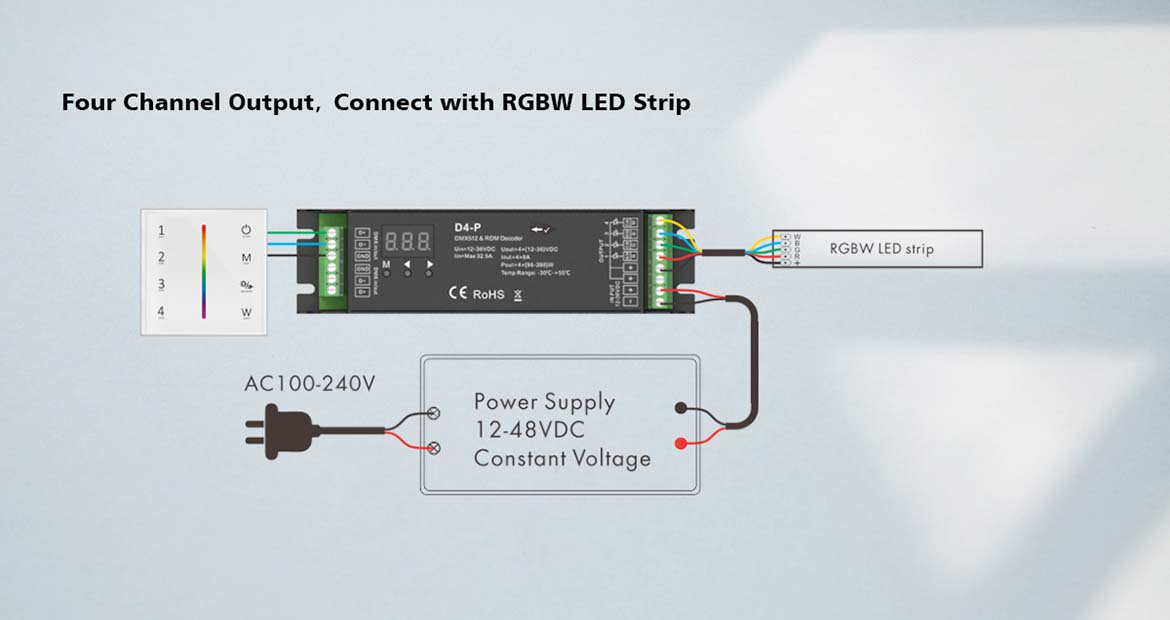

- 1/2/4 DMX channel output.
- 16bit (65536 levels)/8bit (256 levels) grey level.

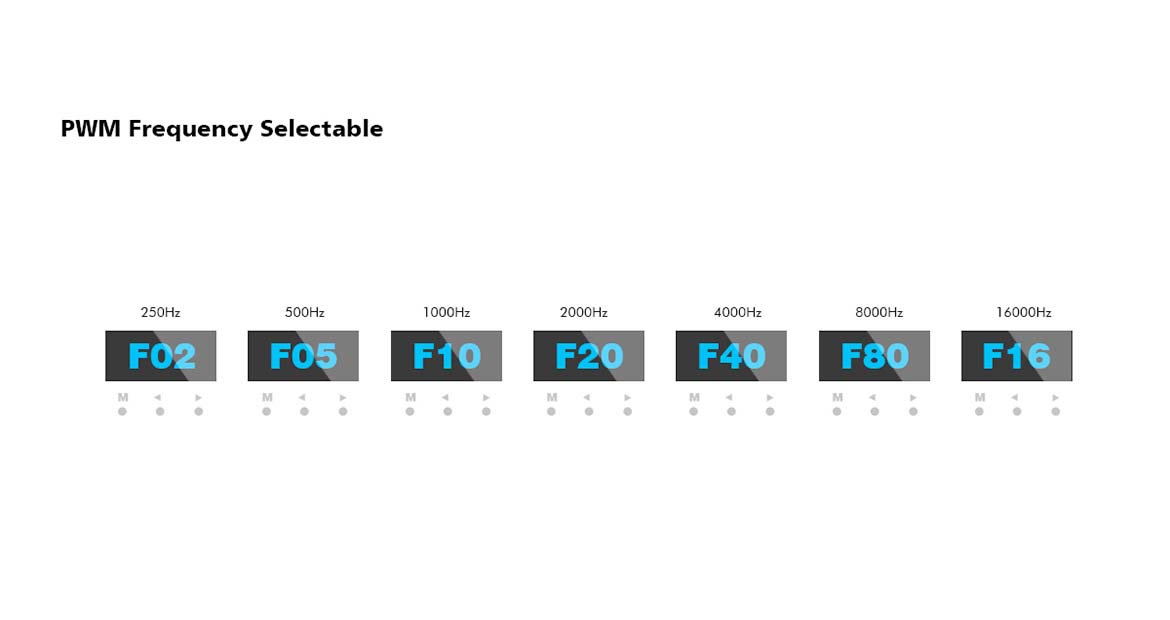

- PWM frequency 250/500/1000/2000/4000/8000/16000Hz.

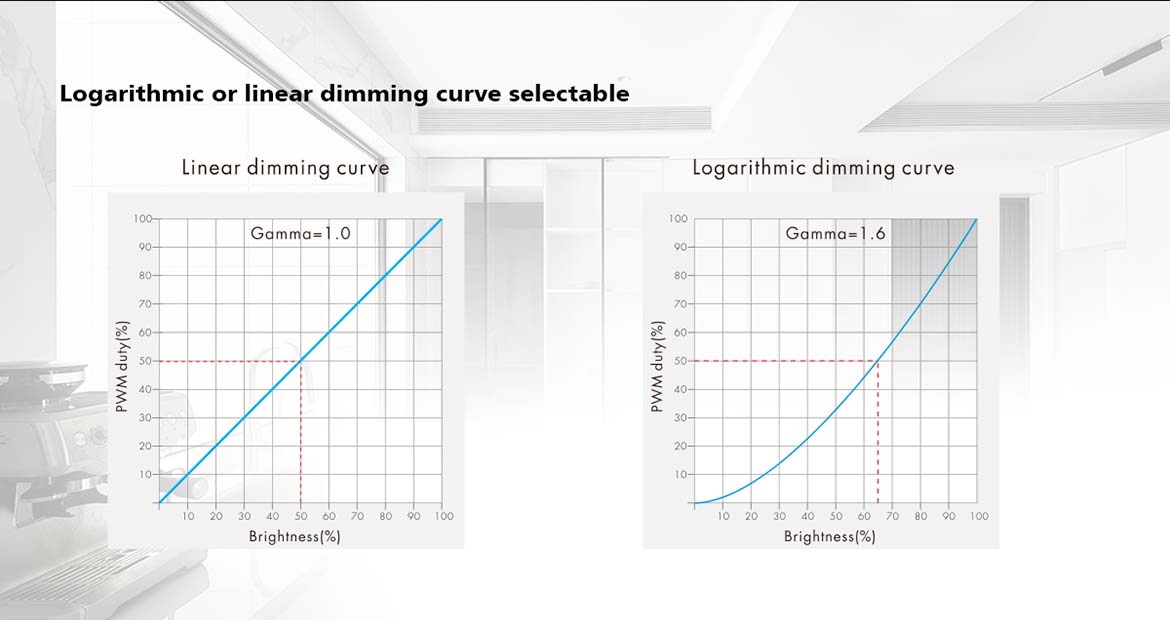

- Logarithmic or linear dimming curve adjustable.
- Over-heat/over-load/short circuit protection, and automatic recovery.

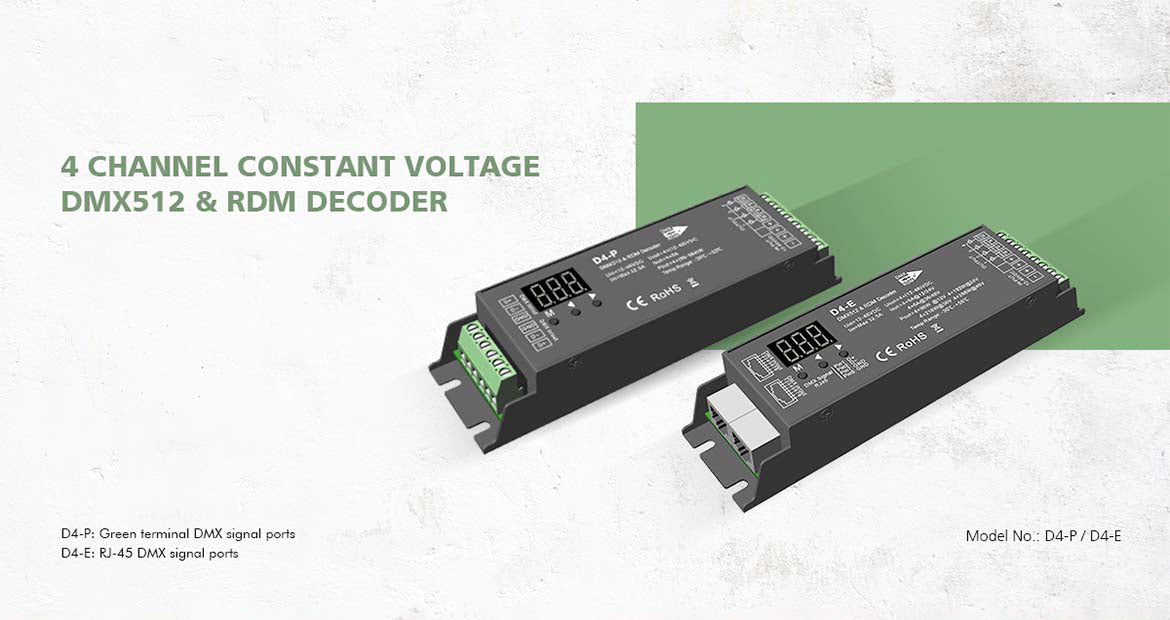

- Green terminal DMX signal ports.
Fast Delivery28 Days ReturnsSecure Payment
- Input Voltage: DC12-48V
- Input Current: 32.5A
- Output Voltage: 4xDC12-48V
- Output Current: 4x8A@12/24V, 4x6A@36/48V
- Output Power: 4x96W@12V, 4x192W@24V, 4x216W@36V, 4x288W@48V
- Output Type: Constant Voltage
- IP Rating: IP20
- Working Temperature: -30°C to +55°C
- Case Temperature: Max. +75°C

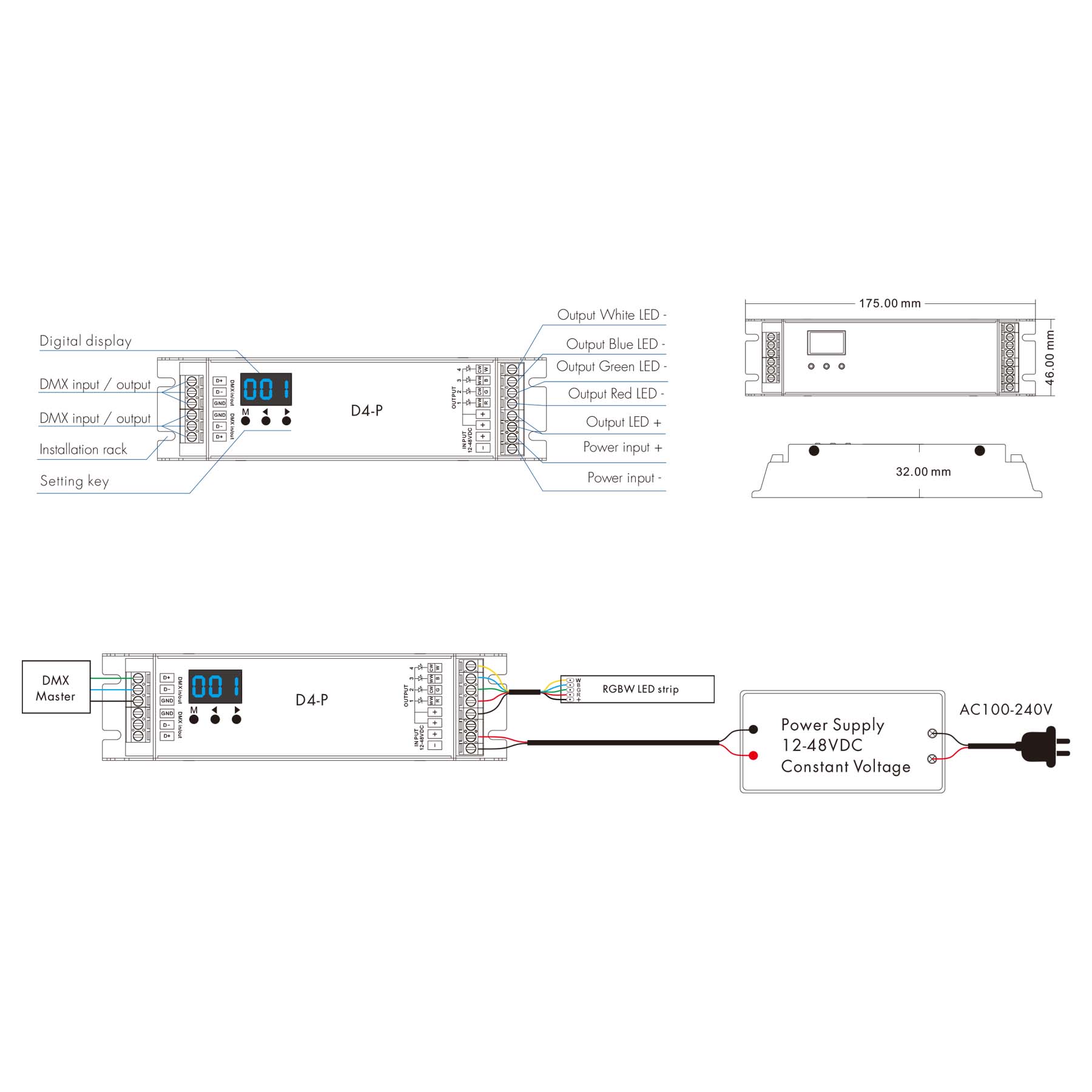

- Dimension: 175(L)x46(W)x32(H)mm
- EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
- Safety Standard: EN 62368-1:2020+A11:2020
- Radio Equipment (RED): ETSI EN 300 328 V2.2.2
- Warranty: 5 Years
